Product details

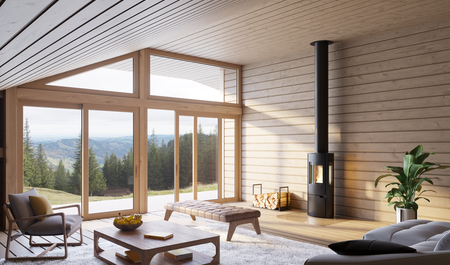

With the unstable price of gas and electricity, the recommendation is to break free from the energy grid, by installing a all-in-one system: a perfect combination of a DEFRA exempt stove in an easy to install package to add a stove and chimney to a newly built house or a bungalow, a self build project, or a luxury home at the drawing stage.
Our innovative and advanced clean burning technology provides an eco-friendly and pleasant warmth. Wood stoves achieve up to 84 % energy-efficiency – delivering more heat with less wood.
In addition to meeting the requirements of Ecodesign for efficiency and emissions, all clearSkies certified appliances at Level 3 or above will also have been verified by the scheme administrator as meeting the requirements for Defra exemption. Therefore you can be assured that our SG models exceed the minimum requirements and are future proofed as well as approved on the Defra website to be installed in Smoke Control Areas
- Heat sustainably and Co2 neutral with local firewood, independent of international electricity, gas and oil suppliers.
- High energy efficiency: Class A+ environmentally friendly combustion tested according to DIN EN 13240.
- Air-cooled door handle and self-closing door.
- Simple operation with one lever for both primary and secondary
combustion air. - Adjustable legs for uneven floors.

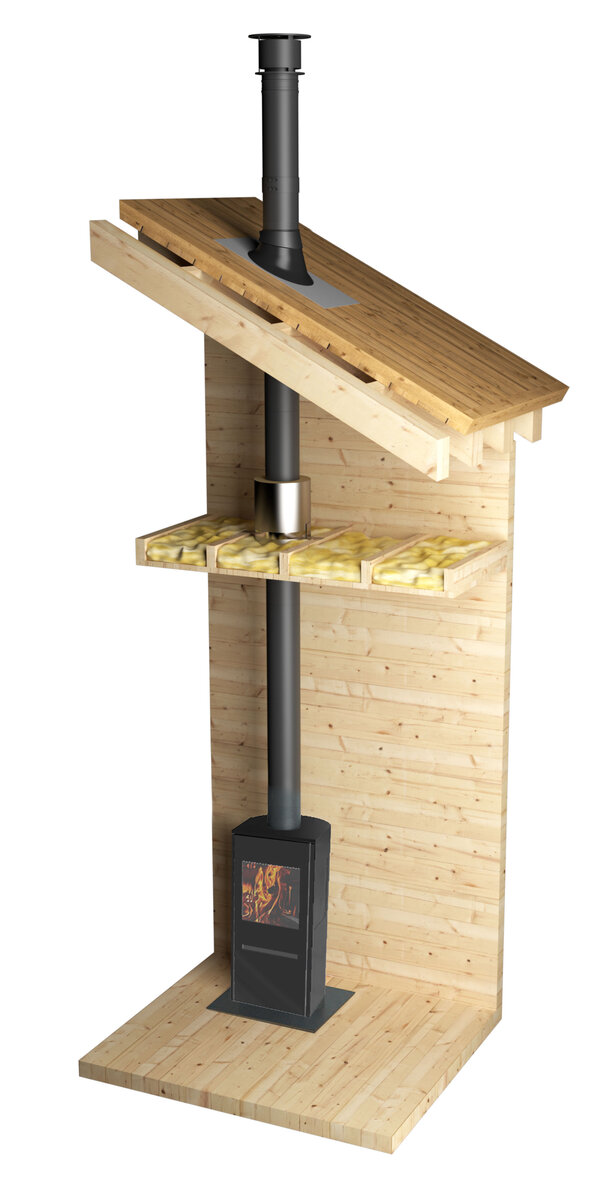

- Twin wall system, ideal for timber frame buildings such as log cabins.
- Exceptional minimal distances to combustibles.
ICID Lifetime guarantee
- The Lifetime Guarantee applies to the ICID chimney system when installed with a stove. We are confident in our products and so offer you (the owner) a generous guarantee in relation to the ICID system (the System).
Corrosion resistant

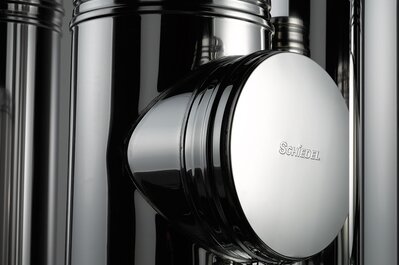

Advanced corrosion resistant design and construction uses laser welded 316L stainless steel inner liner and stainless steel case.
Highly insulated
- The 25mm of high density mineral wool insulation maintains flue gas temperature, maximising efficiency, improving flue draught on start up and minimising condensation.
Easy to install

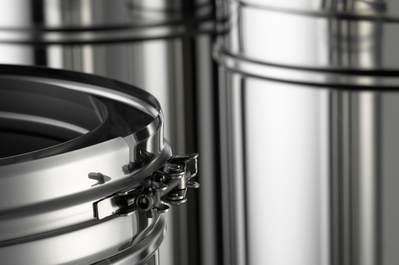

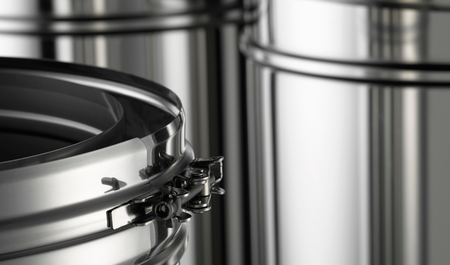

- Twist-lock bayonet jointing system. Secured by locking band.
Some useful links on stoves

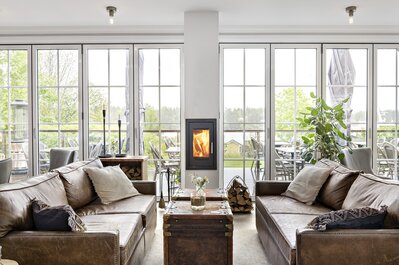

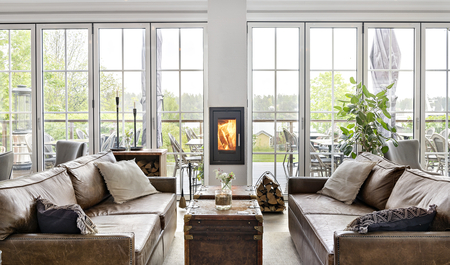

CELSIUS STOVE SYSTEM
Our volcanic pumice stove and chimney system in a contemporary design.
Details & Services
SG wood burning stove
- High energy efficiency: Class A+.
- Air-cooled door handle and self-closing door.
- Simple operation with one lever for both primary and secondary combustion air.
SG 1
SG 3
Technical data
| Basic data (dimensions, weight & co.) | |
Width (overall) |
502 mm |
Length (overall) |
408 mm |
Height (overall) |
1101 mm |
Overall system weight |
100 kg |
Efficiency |
81 % |
Nominal heat output |
6,8 kW |
Energy efficiency class |
A+ |
| General product features | |
Performance features |
EN 13240 RRF – 40 17 4674 |
Room sealed |
No |
Colour |
Black |
Occupation |
Single |
Suitable for passive house |
No |
Heating technology |
Conventional heating technology |
Notes |
SARGAS 1 / SARGAS 3 Emissions: CO2 (at 13% O2) 1125 mg/m3; Emissions: dust 6 mg/m3; Model 1: front 1200 mm / sides 100 mm and back 70 mm; Model 3 front 1200 mm / sides 400 mm and back 50 mm; Allowed fuel consumption: 2 kg/h |
