Highlights
Our Celsius system is a perfect solution for a modern fireplace insert, generating warmth and comfort, as well as style. It comes in a portrait frame with a highly insulating surround, formed from volcanic pumice sourced direct from the Hekla Volcano in Iceland.

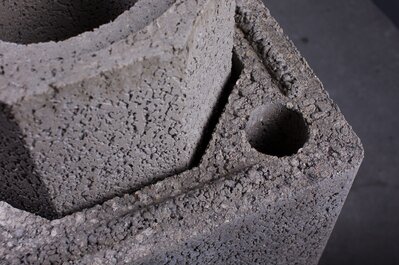

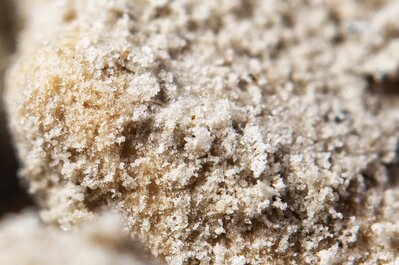

Natural volcanic pumice
Pumice is a natural insulator. This is the unique property that separates pumice from all other chimney materials. The insulating properties of Pumice allow the flue gases in the chimney to quickly reach their optimum temperature enabling the heating appliance to reach its optimum performance shortly after lighting.
It also keeps the chimney warmer longer as the heat output of the appliance decreases – once again aiding performance and reducing the likelihood of condensation and soot build-up.

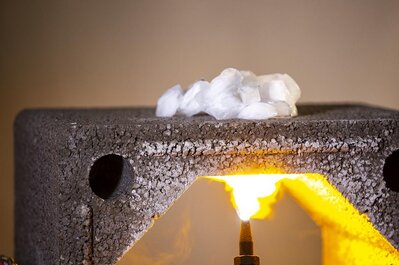

Resistant to temperature change
Pumice has very little expansion and contraction with temperature change. This reduces the possibility of cracking and structural damage that can occur with other products.
High insulation properties
Pumice is a natural insulator, able to maintain the temperature of flue gases when other products have allowed the temperature to fall below the dew point.
Lightweight
Pumice is strong yet lightweight allowing one person to lift and build the chimney units.
Details & Services
Celsius has a standard height of 1500 mm, but since the frame and chimney have the same dimensions, the height can easily be changed with additional chimney modules. Being formed from volcanic pumice, the Celsius system is simple and lightweight giving you clean lines and the smallest possible footprint to construct, and can be placed with 0 mm distance to combustible material from the back, and with only 300 mm from the sides
Easy to build – lasts a lifetime
- Easy to build – lasts a lifetime
- Simple and timeless design
- Can be placed with 0 mm distance to combustible material on the back and 300 mm to the sides
- Can be placed anywhere in the house as the air supply is integrated.
- an be integrated into a non-combustible wall, saving space
- No high temperatures on surfaces of frame and surround
- Convection insert, which distributes heat in rooms
- Extremely energy efficient A+ rated
- Environmentally friendly combustion
- CE marked solution
Technical data
| Basic data (dimensions, weight & co.) | |
Width (overall) |
440 mm |
Length (overall) |
440 mm |
Height (overall) |
1500 mm |
Overall system weight |
240 kg |
Efficiency |
83 % |
Nominal heat output |
6.7 kW |
Energy efficiency class |
A+ |
| General product features | |
Airtight |
Yes |
Colour |
Black |
Notes |
Danish Technological Institute DS/EN13240/A2:2004; Norweigan Standard NS3058 and NS3059 (PM Measurement); European Standard EN16510-1:2018 |
