US - For high temperatures in negative pressure operation
Highlights

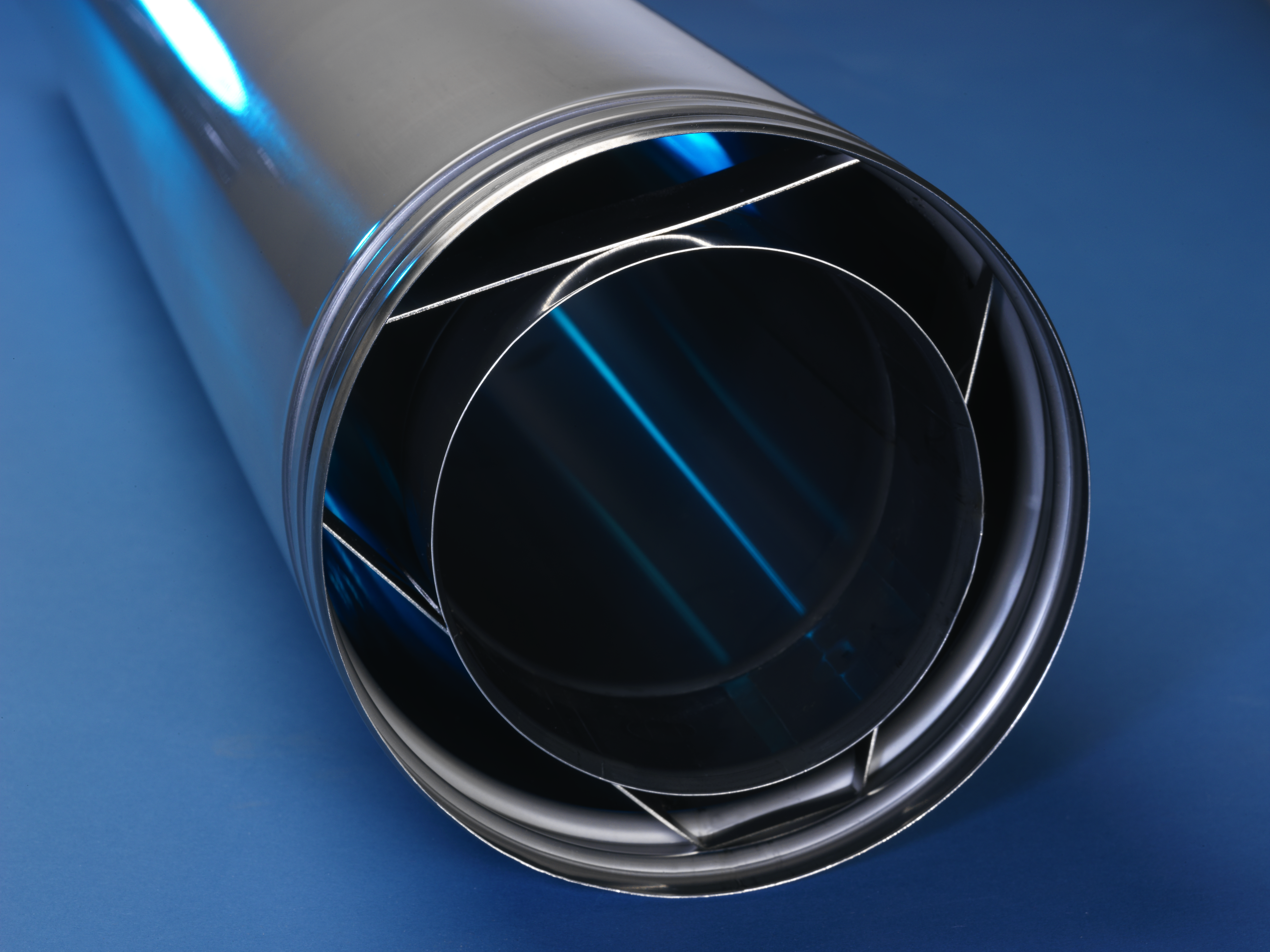

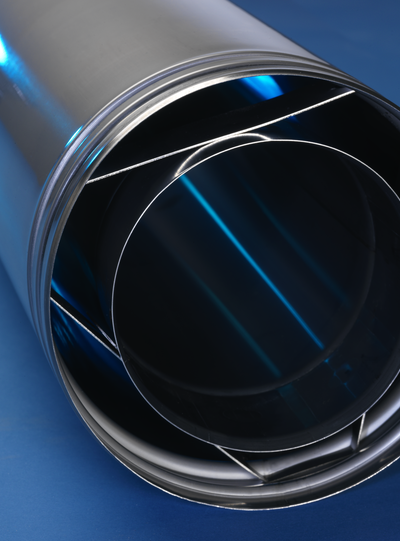

US (formerly METALOTERM US) is a modular, concentric air flue gas system made of stainless steel and can be used at high flue gas temperatures in negative pressure operation. The system is therefore suitable for connection to gas fires operated independently of the ambient air for the C11 and C31 operating modes. We have summarized all the advantages of the air/flue gas system for you:
Quicklinks
Simple installation
The US air/flue gas system can be installed vertically or horizontally. Lightweight components make installation quick and easy.
The US air/flue gas system can be installed vertically or horizontally. Lightweight components make installation quick and easy.
Functional
US is a concentric air/flue gas system made of stainless steel and can be used for high flue gas temperatures in negative pressure operation. Accordingly, the system is suitable for room-sealed gas fires (operating mode C11 and C31). You can also obtain the appropriate boiler connection piece for each heating system from Schiedel.
US is a concentric air/flue gas system made of stainless steel and can be used for high flue gas temperatures in negative pressure operation. Accordingly, the system is suitable for room-sealed gas fires (operating mode C11 and C31). You can also obtain the appropriate boiler connection piece for each heating system from Schiedel.
Certified quality
The US system is manufactured using only the highest quality materials and precision. The air/flue gas system has been tested in accordance with EN 613 with many appliance types.
The US system is manufactured using only the highest quality materials and precision. The air/flue gas system has been tested in accordance with EN 613 with many appliance types.
Gallery (Pictures & Videos)
Further interesting content
ME - The single-walled exhaust flue system
ME is a modular single-walled exhaust air & gas flue system made of stainless steel. It is suitable for refurbishments, boilers, etc.
ICS - The double-walled stainless steel gas flue system
ICS is a moisture-resistant, double-walled stainless steel flue gas system with low weight suitable for all fuels & negative/ positive pressure.

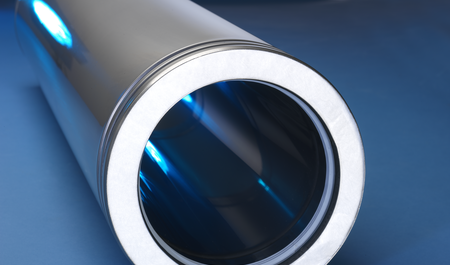

MF - Double-walled, pre-insulated & modular
Suitable for ovens, industrial systems, tiled stoves, condensing boilers, low-temperature and solid fuel fireplaces.
Details & Services
Find out more about the details and services for the US gas flue system, such as the design, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.
The system structure

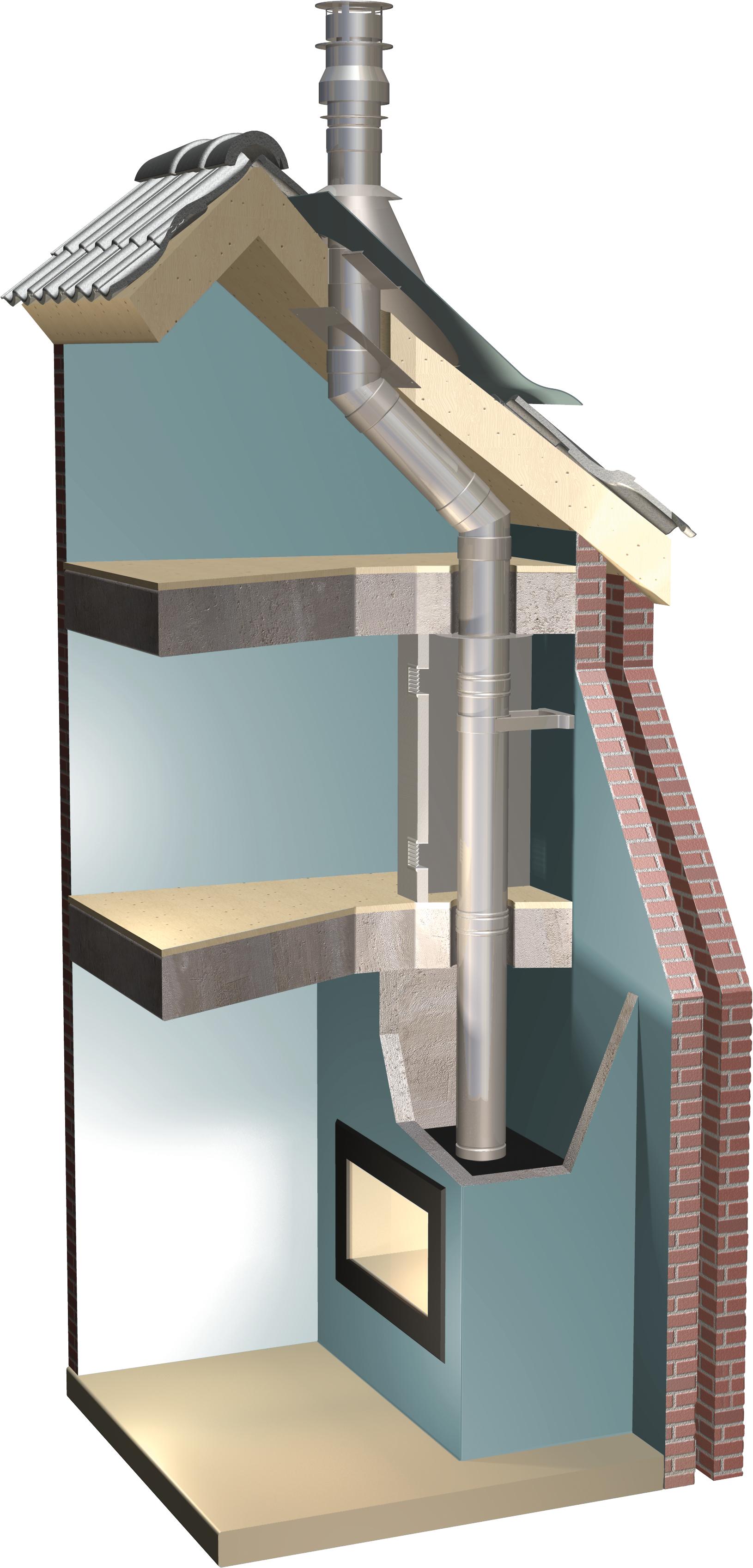

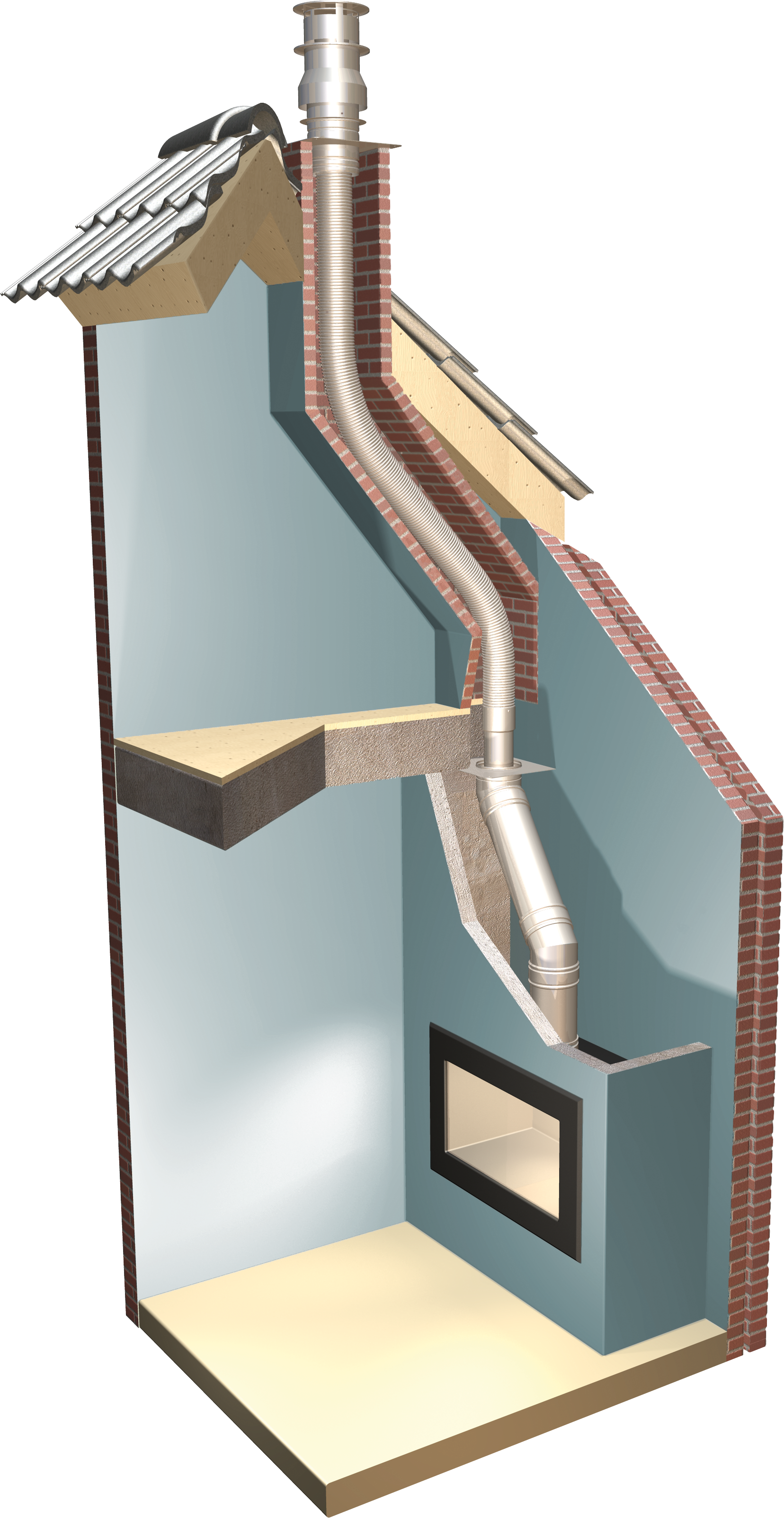

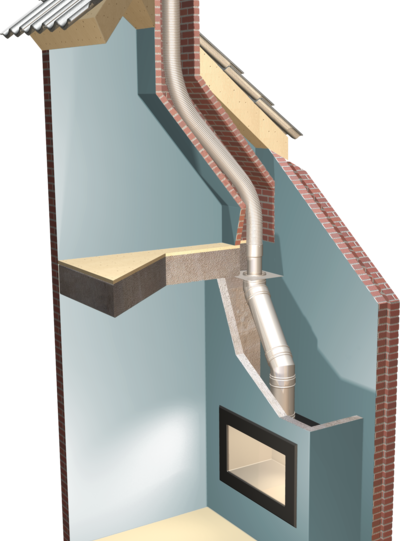

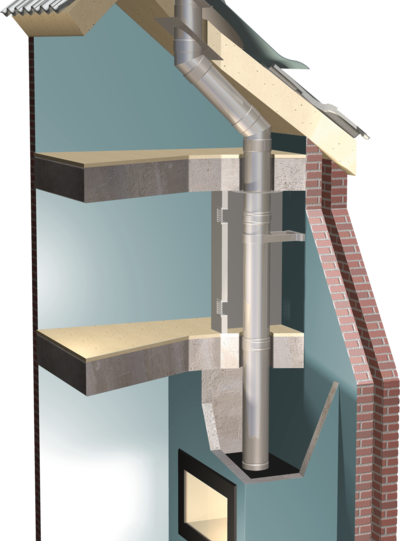

The US system is routed out of the gas stove and mounted on the wall. The stainless steel pipe routed in the chimney is topped off with an outlet cone after passing through the roof.
Technical data
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,4 mm |
Wall thickness per diameter (outside) |
0,4 mm |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Short firing temperature under negative pressure |
≤ 600 °C |
Material (Inner liner) |
AISI 304-EN 1.4301 |
Material (Outer case) |
AISI 304-EN 1.4301 |
| General product features | |
Operating |
Negative pressure (N), Dry |
Room sealed |
Yes |
Occupation |
Single |
Suitable for passive house |
No |
Heating technology |
Condensing boiler technology, Low temperature technology |
